Our Advantages

1. The biggest sheet pile manufacturer in China,we have exported into over 180 different countries

2.We can produce all types of sheet piles,pipe piles and accessories,we can adjust our machines to produce in any width x height x thickness

3.We can produce single length up to over 100m,and we can do all painting,cutting,welding etc fabrications in factory

4.Fully internationally certified:ISO9001,ISO14001,ISO18001,CE,SGS,BV etc..

5.We can give advice and suggestions on drive and installation of sheet piles and pipe piles etc.

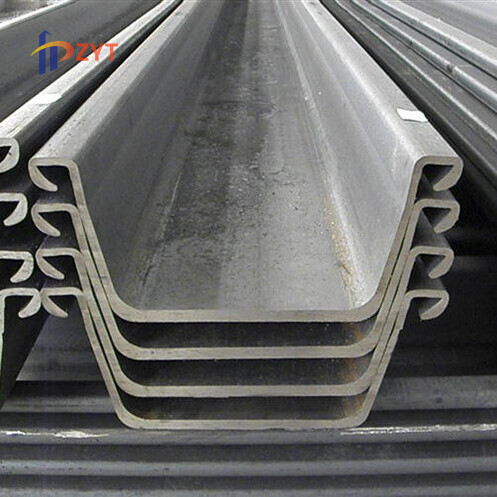

Type: U-Type Hot RolledLengths  available: 6m, 8m, 9m, 10m, 12m, 18m, 20m Steel Grade: 355 or 390

Cold Rolled Z Type Steel Sheet Pile

Z profile steel sheet piles are call Z because one single sheet pile stands like the letter. Cold formed sheet piling is also produced through a series of rollers, by which the Z shape is formed gradually with uniform thickness along the full length of the profiles. The thinnest Z type  sheet piling might be only 3mm thickness. 15 years ago, cold rolled sheet piling manufacturer was only in Europe, today most  sheet piling is produced in China, especially heavy gauge sections. Clutches are located on both sides far from the neutral axis, which provide maximum use of the materials and also good for a bigger modulus of section. Like all other cold rolled metal sheet piles, Z sections can also be produce in any possible width, height, thickness. OZ sheet pile, PAZ sheet pile, all other sheet piling specifications and dimensions are all no problem. Different from hot rolling technology, in which the profiles can form the shape in mills, cold forming needs another process of rolling and forming, the maximum thickness for cold rolled Z type sheet pile is 16mm.

Sheet piling design and calculation can be done from the very beginning, our factory can tailor make the dimensions and specifications for projects, you can know the total costs from the very beginning . Any steel grade all can be used, S235 S355 S390 S430 S460 etc is only a matter of request. In Asia, U type steel sheet pile is still the tradition, but more and more jobs, especially wharf constructions, deep foundations, seawall, bulkheads requires Z sizes. Now in Europe, especially western Europe, sheet pile contractors prefer Z profiles. HZ combined wall,OZ sheet piles and tubular combined walls all use Z types.

Fibre reinforced polymer (FRP) are a medium  to high strength sheet pile most suitable  where corrosion resistance is required. Lighter  & easier to handle than steel sheet piling. FRP  offers an environmentally friendly alternative  for use in marine structures, coastal  protection & flood walls.

Advantages

· Sheet pile walls provide a high degree of safety due to their excellent sealing qualities.

· There are a variety of profiles available. This allows the sheet piling to be flexibly adapted to the specific requirements of the construction site.

· The method is low on resource consumption, as the profiles can be extracted and reused.

· Low-impact installation methods mean that sheet piling can also be used in inner-city areas. Hydraulic jacks and state-of-the-art high-frequency vibrators are used for this purpose.

· Sheet pile wall production is resource-friendly, no soil needs to be extracted.

· The site facilities require very little space, and the execution does not depend on weather conditions.
