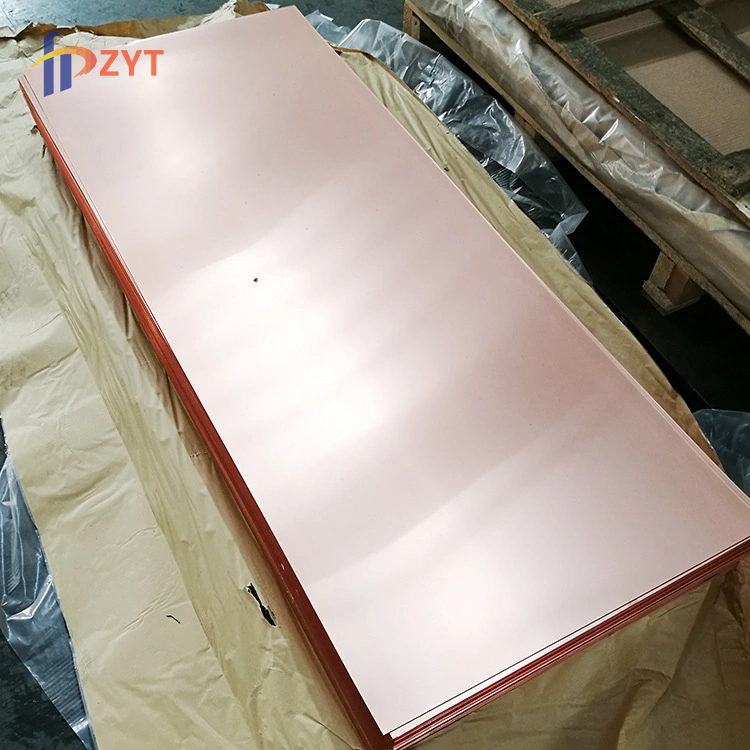

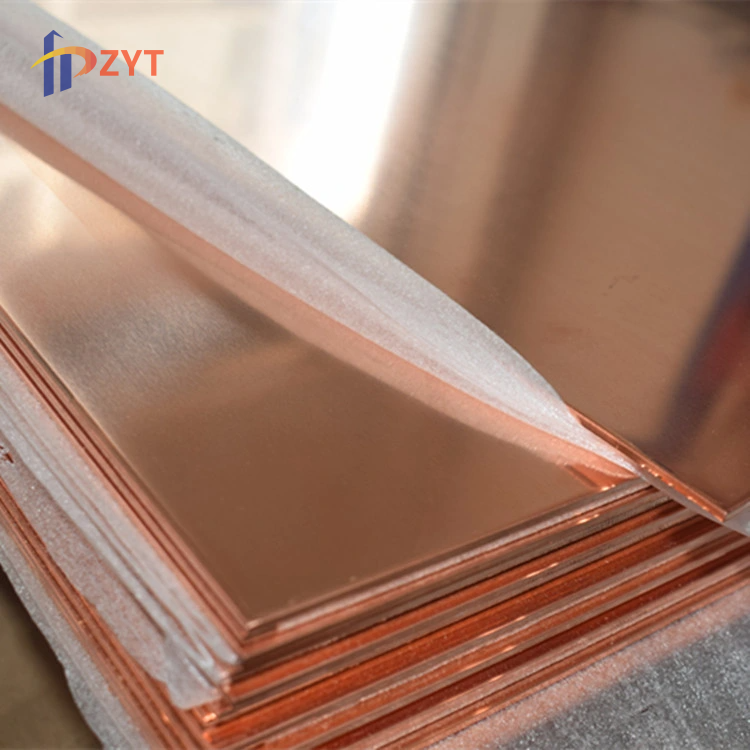

C12000 Copper Plate

Type: Copper/Brass
Standard: ASTM, JIS, ASME, AISI, EN, BS
Size: According to the customer's requests
Advantage: Reasonable price and abundant stock
Delivery Time: Usually 5-15 days, or upon negotiation
Samples: Free Samples
Email: daisy@zyt-steelgroup.com
What’sapp: +86 18761589184

Email：daisy@zyt-steelgroup.com

WhatsApp：+86 18761589184

Inquiry Now →

Parameter

Product Description

Copper plate is a highly stable, low maintenance roofing and curtain wall material that is environmental, safe to use, easy to process and highly resistant to corrosion. A stable protective layer allows the life of the copper plate to exceed 100 years. The economic performance of copper plate is one of the best metal roofing materials.

Specifications

Product Name	Copper Plate/Sheet
Thickness	0.1mm-300mm
Width	10-3000mm
Length	100-12000mm, Or As Required
Standard	ASTM, AISI, JIS, GB, DIN, EN
Material	T1,T2,C10100,C10200,C10300,C10400,C10500,C10700,C10800,C10910,C10920, TP1,TP2,C10930,C11000,C11300,C11400,C11500,C11600,C12000,C12200,C12300, TU1,TU2,C12500,C14200,C14420,C14500,C14510,C14520,C14530,C17200,C19200, C21000,C23000,C26000,C27000,C27400,C28000,C33000,C33200,C37000,C44300,C44400,C44500, C60800,C63020,C65500,C68700,C70400,C70600,C70620,C71000,C71500,C71520,C71640,C72200,et
Hardness	1/16 hard,1/8 hard,3/8 hard,1/4 hard,1/2hard,full hard,soft,etc
Surface	mill,polished,bright,oiled,hair line,brush,mirror,sand blast,or as required
Export to	Singapore,Indonesia,Ukraine,Korea,Thailand,Viet Nam,Saudi Arabia,Brazil,Spain, Canada,USA,Egypt,India,Kuwait,Dubai,Oman,Kuwait,Peru,Mexico,Iraq,Russia,Malaysia,etc
Application	1. Pancake Coil for ACR, General Engineering Applications 2. LWC Coil for ACR, General Engineering Applications 3. Straight Copper Tubes for ACR and Refrigeration 4. Inner-grooved copper tube for ACR and Refrigeration 5. Copper Pipe for Transportation System of water, gas and oil 6. PE-coated copper tube for water/gas/oil transportation system 7. Semi-finished Copper tube for industrial applications
MOQ	1 Ton. We can accept sample order.
Price Terms	FOB, EXW, CIF, CFR, DDP

Chemical Composition

Alloy Grad	Cu+Ag	P	Ag	Bi	Sb	As	Fe	Ni	Pb	Sn	S	Zn	O
C11000	99.9			0.001	0.002	0.002	0.005		0.005		0.005
C10100	99.97	0.002		0.001	0.002	0.002	0.004	0.002	0.003	0.002	0.004	0.003	0.002
C10200	99.95	0.002		0.001	0.002	0.002	0.004	0.002	0.004	0.002	0.004	0.003	0.003
C12000	99.9	0.004-0.012
C12200	99.9	0.015-0.04
C10400	99.9			0.001	0.002	0.002	0.005		0.005		0.005

Mechanical Properties

Grade	Temper	Tensile Test			Hardness Test
		Thickness/mm	Tensile Strength Rm/MPa	Elongation A11.2/%	Thickness/mm	HV	HRB
C11000 C12000 C12200 C10100 C10200 C10400	O	12-150	≥195	≥30
	O 1/2H H E-H	0.3-10	≥205 215-275 245-345 295-380 ≥350	≥30 ≥25 ≥8 - -	≥0.3	≤7 60-90 80-110 90-120 ≥110
