Product Description

Copper plate is a highly stable, low maintenance roofing and curtain wall material that is environmental, safe to use, easy to process and highly resistant to corrosion. A stable protective layer allows the life of the copper plate to exceed 100 years. The economic performance of copper plate is one of the best metal roofing materials.

Specifications

CuCo2Be—UNS.C17500 (Alloy 10) Cobalt Beryllium Copper Plate/Sheet

A).

CuCo2Be-UNS.C17500 (Alloy 10) Details

CuCo2Be—C17500 (CDA 175) Cobalt Beryllium Copper is primarily utilized in the industry applications that require most highly thermal or electrical conductivity, which features a cobalt alloying addition (2.40-2.70%). C17500 also Offers good strength and hardness characteristics coupled with conductivity in the range of 45-60 percent of copper with ultimate tensile and hardness properties approaching 140 ksi and RB 100 respectively.

B).

CuCo2Be - C17500 (Alloy 10) Cobalt Beryllium Copper Plate/Sheet

Chemical Composition

Be: 0.40-0.70%

Co: 2.40-2.70%

Cu: Balance

Note: Copper plus additions equal 99.5% minimum.

C).

CuCo2Be -C17500 (Alloy 10) Cobalt Beryllium Copper Alloys

Typical Physical Properties

Density (g/cm3): 8.83

Density before age hardening (g/cm3): 8.75

Elastic Modulus (kg/mm2 (103)): 14.10

Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): 18 x 10-6

Thermal Conductivity (cal/(cm-s-°C)): 0.48

Melting Range (°C): 1000-1070

D).

CuCo2Be - C17500 (Alloy 10) Cobalt Beryllium Copper Plate/Sheet

International Specification

Sheets: ASTM B534

Plates: ASTM B534, SAE J461,463; RWMA Class 3

European Standards: CuCo2Be, CuCoBe, Alloy 10, DIN 2.1285; CW104C to EN

Note:

ASTM: American Society for Testing and Materials

SAE: Society of Automotive Engineers

AMS: Aerospace Materials Specification (Published by SAE)

RWMA: Resistance Welder Manufacturers' Association

Note: Unless otherwise specified, material will be produced to ASTM.

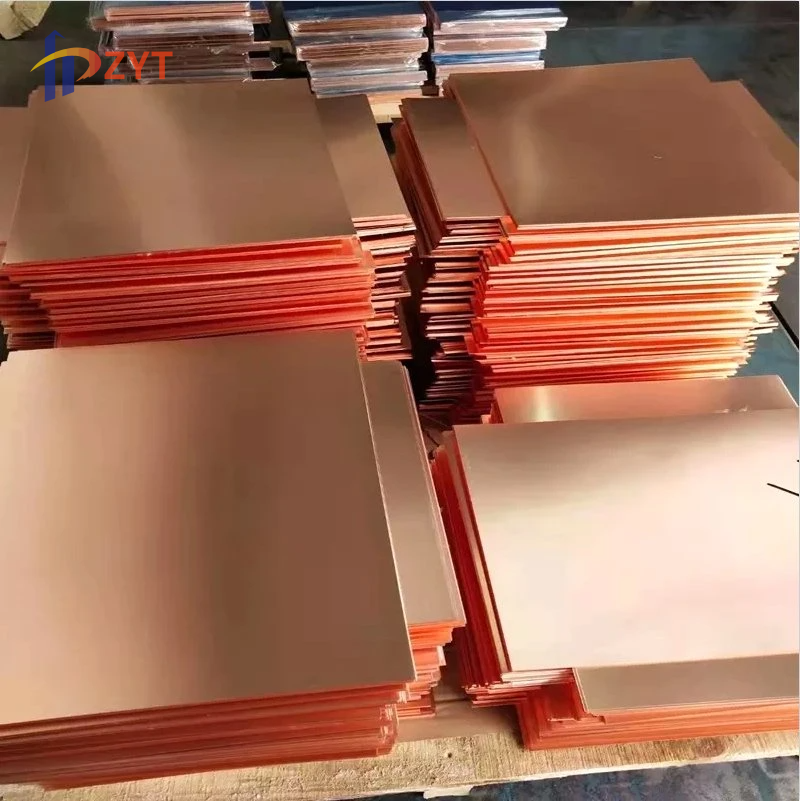

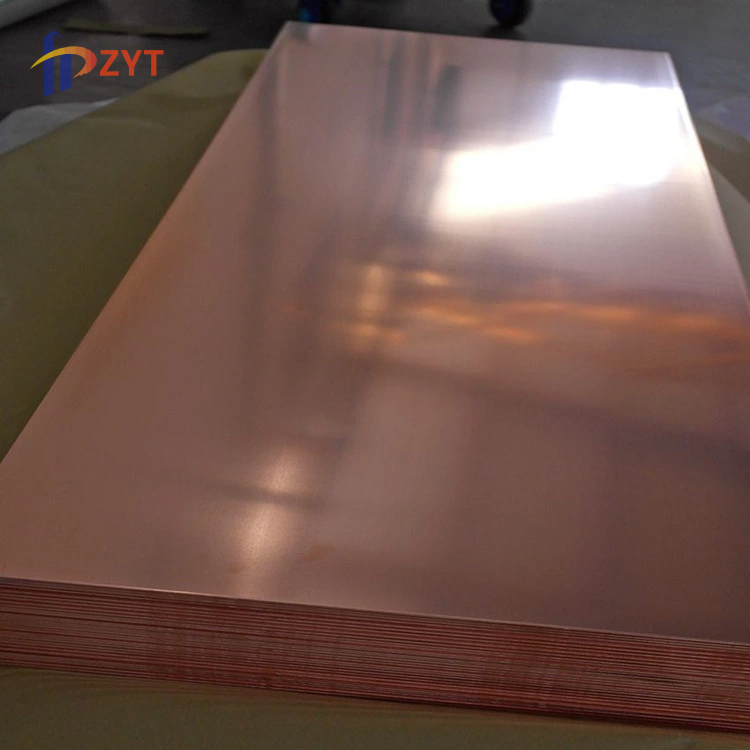

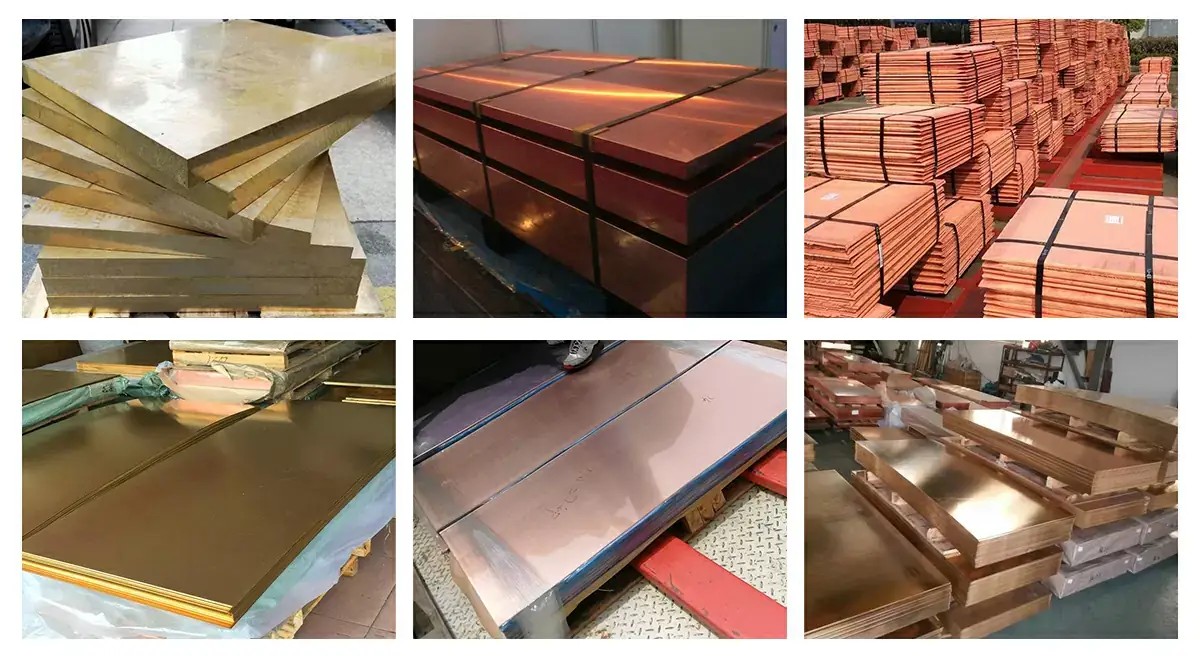

Product Display

Company Profile

WUXI ZHONGYUANTONG STEEL CO.,LTD

WUXI ZHONGYUANTONG STEEL CO., LTD established in 2009, is a company specializing in the sales of steel products. The company is located in Dongting Middle Road, Xishan District, Wuxi City, Jiangsu Province, China, with branches all over the country.

The company's main business covers stainless steel plate, stainless steel pipe, stainless steel bar, stainless steel coil, aluminum plate, aluminum bar, carbon steel, galvanized sheet, alloy, and other steel products, providing customers from all walks of life with a wide range of choices and quality products and services.

The company has an efficient and professional sales team and technical staff, rich market experience and technical knowledge, and can quickly and accurately answer customers' questions and needs, and has won a good reputation and reputation in the industry.

FAQ

Q1. Where is your factory?

A1: Our company's processing center is located in Jiangsu, Wuxi, China. We can provide a wide range of personalized services according to the customers' needs.

Q2. What are your company's main products?

A2: Our main products are stainless steel plate/sheet, coil, pipe, bar, and channel; carbon steel plate, pipe, coil; galvanized sheet, coil; aluminum plate, rod, etc.

Q3. How do you control quality?

A3: Mill Test Certification is supplied with shipment, Third Party Inspection is available.

Q4. What are the advantages of your company?

A4: We have many professionals, technical personnel, more competitive prices, and best after-dales service than other stainless steel companies.

Q5. How many countries you already exported?

A5: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan, UAE, Brazil, etc.

Q6. Can you provide a sample?

A6: Yes, we would provide samples For Free.
